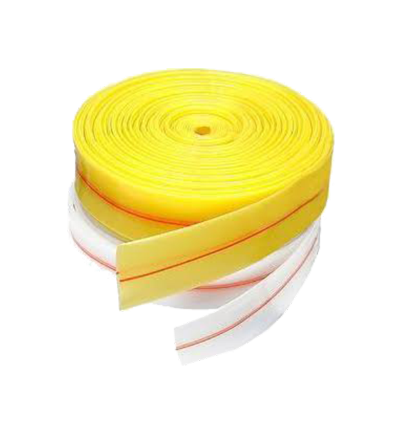

LLDPE Hoses
KEY FEATURES
- Corrosion Free
- Requires minimum storage space
- Tough and puncture proof
- Remains soft and pliable even undersub-zero temperatures
Orissa Plasto premium range of lead-free LLDPE hoses are made from virgin Linear low-density polyethylene suitable for domestic, industrial, agricultural, irrigation purposes ranging from 25 MM to 300MM.
SPECIFICATIONS
| Nominal size | Inside dia. | Wall Thickness | Pressure at 30°C | Standard Lengths | |
|---|---|---|---|---|---|
| mm | mm | mm | Working Pressure – kg/cm² | Bursting Pressure – kg/cm² | mtrs. |
| 25 | 26 ± 1 | 1.0 ± 0.1 | 4 | 11 to 12 | 50/60/100 |
| 40 | 41 ± 1 | 1.0 ± 0.1 | 4 | 11 to 12 | 50/60/100 |
| 50 | 53 ± 1 | 1.1 ± 0.1 | 3 | 8 to 9 | 50/60/100 |
| 65 | 66 ± 1 | 1.2 ± 0.1 | 3 | 6 to 7 | 50/60/100 |
| 75 | 82 ± 1 | 1.2 ± 0.1 | 3 | 6 to 7 | 50/60/100 |
| 100 | 104 ± 2 | 1.2 ± 0.1 | 3 | 6 to 7 | 50/60/100 |
| 150 | 154 ± 3 | 1.8 ± 0.1 | 3 | 5 to 6 | 50/60/100 |
| 200 | 204 ± 3 | 2.3 ± 0.2 | 2 | 3 to 4 | 50/60/100 |
| 250 | 257 ± 3 | 2.5 ± 0.2 | 2 | 2.5 to 3 | 50/60/100 |
| 300 | 310 ± 3 | 2.7 ± 0.3 | 2 | 2.5 to 3 | 50/100 |
* Application of LLDPE Flat Hose is for Delivery Purpose, Consider Maximum Bursting Pressure 1.5 to 2.5 times the Working Pressure for Better Application of the Hose.
- High Quality Standards
- Non Corrosive
- High Flow Rates - No Chocking
- Leak Proof Joints
- High Chemical Resistance
- UV Stabilized
- Quick & Convenient to Install
- Cost Effective
- Elegant
- Stronger, Resilient and Longer Lasting
