CPVC Pipes and Fittings

Orissa Plasto Cpvc Premium Pipes & Fittings Made From Cpvc Compound Which Meets The Maximum Service Temperature Up To 93 ° Celcius

Orissa Plasto CPVC Pipes & Fittings are Manufactured at Aadi Polyextrusion & Moulding Pvt. Ltd. (a unit of Orissa Plasto Pipes Pvt. Ltd.). It is Manufactured from Speciality Plastic, Chemically known as Chlorinated Poly Vinyl Chloride (CPVC). This CPVC Compound shall meet Cell Clasification 23447-B as Defined by ASTM D 1784.

Orissa Plasto CPVC Pipes & Fittings are Manufactured from Identical CPVC Compounds having the same Physical Properties. CPVC Pipes are Produced in Copper Tube Size ( CTS) from 15mm (½") to 50mm (2") with two Different Standard Dimensional Ratios SDR 11 & SDR 13.5. CPVC Fittings are also Produced as per ASTM D 2846 & IS :17546 in the above sizes in SDR 11. The CPVC Pipes from ½" (15mm) to 2" (50mm) are also Produced as per IS: 15778 Standards in both Classes i.e. Class 1 (SDR 11) & Class 2 (SDR 13.5).

In spite Of having the same Physical Properties, SDR 11 and SDR 13.5 which are having Different wall Thicknesses and therefore, at any given Temperature, they have Different Pressure ratings as below :

Pipe	Temperature (^oC)	Pressure Rating
Pipe	Temperature (^oC)	Kg/Cm²	PSI
SDR 11	27	28.10	400
	82	7.00	100
SDR 13.5	27	22.50	320
	82	5.60	80

FIELD OF APPLICATIONS : Hot and Cold water Applications in Bungalows & Appartments, Commercial & Corporate Houses, Hotels & Resorts, Hospitals & Academic Institutes.

CLASS 1, SDR-11

Size(mm)	Size(Inch.)	Outer Dia (mm)	Wall Thickness (mm)
15	1/2"	16.0	1.7
20	3/4"	22.4	2.0
25	1"	28.8	2.6
32	11/4"	35.1	3.2
40	11/2"	41.5	3.8
50	2"	54.3	4.9

CLASS 2, SDR-13.5

Size(mm)	Size(Inch.)	Outer Dia (mm)	Wall Thickness (mm)
15	1/2"	16.0	1.4
20	3/4"	22.4	1.7
25	1"	28.8	2.1
32	11/4"	35.1	2.6
40	11/2"	41.5	3.1
50	2"	54.3	4.0

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	100	1200
20	¾"	100	500
25	1"	50	250
32	1¼"	25	125
40	1½"	15	75
50	2"	8	40

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	100	800
20	¾"	50	300
25	1"	30	150
32	1¼"	15	90
40	1½"	10	60
50	2"	5	25

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	100	2000
20	¾"	100	800
25	1"	50	400
32	1¼"	50	200
40	1½"	20	120
50	2"	12	60

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	100	1500
20	¾"	100	700
25	1"	50	350
32	1¼"	30	210
40	1½"	20	120
50	2"	15	75
20x15	¾"x½"	100	700

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	50	1000
20	¾"	100	600
25	1"	50	300
32	1¼"	25	150
40	1½"	20	120
50	2"	12	72
20x15	¾"x½"	100	600

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	25	500
20	¾"	15	225
25	1"	10	160
32	1¼"	15	105
40	1½"	10	60
50	2"	7	35

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	100	1500
20	¾"	40	600
25	1"	50	300
32	1¼"	25	150
40	1½"	15	105
50	2"	8	48

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	15	255
20	¾"	10	120
25	1"	10	60
32	11/4"	5	50
40	11/2"	5	40
50	2"	5	20

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	25	250
20	¾"	20	160
25	1"	10	80
20x15	¾"x½"	20	200
25x15	1"x½"	15	150
25x20	1"x¾"	15	120

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	25	200
20	¾"	15	120
25	1"	10	70
20x15	¾"x½"	20	160
25x15	1"x½"	10	80
25x20	1"x¾"	10	80

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	30	360
20	¾"	25	250
25	1"	10	120
32	1¼"	8	64
40	1½"	6	48
50	2"	4	32
20x15	¾"x½"	25	250
25x15	1"x½"	20	200

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	30	300
20	¾"	20	200
25	1"	10	120
32	1¼"	8	56
40	1½"	6	48
50	2"	4	24
20x15	¾"x½"	25	250
25x15	1"x½"	20	220

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
20x15	¾"x½"	100	1200
25x15	1"x½"	100	600
25x20	1"x¾"	100	500
32x15	1¼"x½"	40	280
32x20	1¼"x¾"	40	280
32x25	1¼"x1"	40	280
40x15	1½"x½"	30	180
40x20	1½"x¾"	30	210
40x25	1½"x1"	30	180
40x32	1½"x1¼"	25	150
50x15	2"x½"	15	90
50x20	2"x¾"	15	90
50x25	2"x1"	15	90
50x32	2"x1¼"	15	90
50x40	2"x1½"	15	90

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
20x15	¾"x½"	100	2000
25x15	1"x½"	100	1000
25x20	1"x¾"	100	1000
32x15	1¼"x½"	100	500
32x20	1¼"x¾"	100	500
32x25	1¼"x1"	100	500
40x15	1½"x½"	50	300
40x20	1½"x¾"	50	300
40x25	1½"x1"	50	300
40x32	1½"x1¼"	50	300
50x15	2"x½"	20	140
50x20	2"x¾"	20	140
50x25	2"x1"	20	140
50x32	2"x1¼"	20	140
50x40	2"x1½"	20	140

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
20x15	¾"x½"	50	300
25x15	1"x½"	30	150
25x20	1"x¾"	30	150
32x15	1¼"x½"	15	90
32x20	1¼"x¾"	15	90
32x25	1¼"x1"	15	90
40x15	1½"x½"	10	60
40x20	1½"x¾"	10	60
40x25	1½"x1"	10	60
40x32	1½"x1¼"	10	60
50x15	2"x½"	5	25
50x20	2"x¾"	5	25
50x25	2"x1"	5	25
50x32	2"x1¼"	5	25
50x40	2"x1½"	5	25

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
20x15	¾"x½"	100	500
25x15	1"x½"	50	250
25x20	1"x¾"	50	250

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	100	3500
20	¾"	50	1400
25	1"	50	700
32	1¼"	30	420
40	1½"	40	240
50	2"	20	100

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	20	300
20	¾"	15	210
25	1"	10	120
32	1¼"	10	70
40	1½"	5	60
50	2"	5	45

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
20	¾"	25	150
25	1"	15	90

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
15	½"	20	300
20	¾"	15	210
25	1"	10	120

Size(mm)	Size(in.)	Std. Pkg.	Quantity (Box)
20x15	¾"x½"	20	100

fitting/02-2022/COUPLER-removebg-preview1.png

fitting/02-2022/BALL_VALVE-removebg-preview1.png

fitting/02-2022/CPVC_BRASS_ELBOW-removebg-preview1.png

fitting/02-2022/CPVC_BRASS_TEE-150x150.jpg

fitting/03-2022/BRASS_MTA2-150x150-removebg-preview.png

fitting/02-2022/RD_COUPLER-removebg-preview1.png

fitting/02-2022/TANK_CONNECTOR-150x150.jpg

fitting/02-2022/TESTING_PLUG-150x150.jpg

fitting/03-2022/CPVC_BRASS_TEE-150x150.jpg

ASTM D 1784

Specification for Rigid CPVC Compounds.

ASTM D 2846

Specification for CPVC Plastic Pipes & Fittings for Hot & Cold Water Distribution Systems.

ASTM F 493

Specification for Solvent Cements for CPVC Plastic Pipes & Fittings.

IS 17546:2021

Specification for CPVC Plastic Fittings for Portable Hot & Cold Water Distribution Supplies.

IS 15778:2007

Standard for Chlorinated PVC Pipes for Potable Hot & Cold Water Distribution Supplies.

PRESSURE RATING OF CPVC PIPES (SDR 11 & SDR 13.5)
Pipes Size in Inch		1/2	3/4	1	11/4	11/2	2
Pipes Size in mm		15	20	25	32	40	50
SDR 13.5	Average Outer Diameter (mm)	15.90	22.20	28.60	34.90	41.30	54.00
	Tolerance	0.08	0.08	0.08	0.08	0.10	0.10
	Min. Wall Thikness (mm)	1.40	1.70	2.10	2.60	3.10	4.00
	Tolerance	0.51	0.51	0.51	0.51	0.51	0.58
	Pressure Rating (kg/cm2) at 23OC	22.50	22.50	22.50	22.50	22.50	22.50
	Pressure Rating (kg/cm2) at 82OC	5.60	5.60	5.60	5.60	5.60	5.60
SDR 11	Average Outer Diameter (mm)	15.90	22.20	28.60	34.90	41.30	54.00
	Tolerance	0.08	0.08	0.08	0.08	0.10	0.10
	Min. Wall Thikness (mm)	1.70	2.00	2.60	3.20	3.80	4.90
	Tolerance	0.51	0.51	0.51	0.51	0.51	0.58
	Pressure Rating (kg/cm2) at 23OC	28.10	28.10	28.10	28.10	28.10	28.10
	Pressure Rating (kg/cm2) at 82OC	7.00	7.00	7.00	7.00	7.00	7.00

Tapered Socket Dimensions for CPVC 4120,SDR 11,Plastic Pipe Fittings as per ASTM D-2846

Nominal Pipe Size(inch/mm)		Diameter inch (mm)			Socket Length Minimum 'C' inch (mm)	Inside Diameter 'D' inch (mm)	Wall Thinckness inch (mm)
Nominal Pipe Size(inch/mm)		'A' Entarce	'B' Bottom	Tolarance	Socket Length Minimum 'C' inch (mm)	Inside Diameter 'D' inch (mm)	'EA' Entrance min	'EB' Bottom min	'F'
1/2	15	0.633 (16.80)	0.619 (15.72)	(+/-) 0.003 (0.08)	0.500 (12.70)	0.489 (12.42)	0.068 (1.73)	0.102 (2.59)	0.128 (3.25)
3/4	20	0.884 (22.54)	0.870 (22.10)	(+/-) 0.003 (0.08)	0.700 (17.78)	0.715 (18.16)	0.080 (2.03)	0.102 (2.59)	0.128 (3.25)
1	25	1.135 (28.83)	1.121 (28.47)	(+/-) 0.003 (0.08)	0.900 (22.86)	0.921 (23.39)	0.102 (2.59)	0.102 (2.59)	0.128 (3.25)
1 1/4	32	1.386 (35.20)	1.372 (34.85)	(+/-) 0.003 (0.08)	1.100 (27.94)	1.125 (28.58)	0.125 (3.18)	0.125 (3.18)	0.156 (3.96)
1 1/2	40	1.640 (41.86)	1.622 (41.20)	(+/-) 0.004 (0.10)	1.300(33.02)	1.329 (33.76)	0.148 (3.76)	0.148 (3.76)	0.185 (4.70)
2	50	2.141 (54.38)	2.123 (53.92)	(+/-) 0.004 (0.10)	1.700 (43.18)	1.736 (44.17)	0.193 (4.90)	0.193 (4.90)	0.241 (6.12)

Product

CPVC Pipes and Fittings

C- PVC HOT & COLD PIPES SDR 11 & SDR 13.5

Gallery

Elbow

Equal-Tee

Coupler

MTA

FTA

Union

Elbow 45

Ball Valve

Brass Elbow

Brass Tee

Brass FTA

Brass MTA

Reducer Coupler

Reducer Bush

Reducer Tee

Reducer Elbow

End Cap

Tank Connector

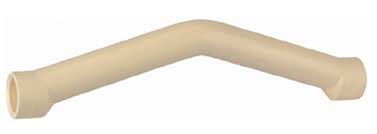

Step Over Bend
